WHY UHP?
WHY UHP?
Ultra High Pressure
Fire Skids & UTV Uplifts
Tough • Dependable • Affordable
SMALLER DROPLETS
MORE SURFACE AREA
UHP water droplets are over 60x smaller than that of a conventional line giving you more water surface area for greater heat absorption
LESS
WATER
FASTER
ACTING
Use 80% less water than a conventional attack line, giving you more firefighting capability in water-scarce areas
UTV Fire Skids
Our skid units offer unparalleled versatility for your department’s needs and budget. The easy to use control panel increases efficiency during high intensity fire or rescue situations.
Standard Features
-
- Triplex Piston Pump
- Honda GX270 Gas Engine with Electric Start
- Venturi Foam Injection with Proportioner
- Water Tank Level Indicator
- One (1) Year Limited Warranty
- Panel Mounted Pressure Gauge
- CAT Dual Strike Nozzle with Fog and Straight Stream Selector
- Engine Mounted Control System (throttle, choke, and key start)
- Hannay Hose Reel with Auto-Retract
The skid is best suited for grass fires and can be equipped with a rescue area for off-road transport. Our proprietary tank recirculation feature comes standard and prevents premature wear on the pump.
| MODEL | R650 | R8000 |
|---|---|---|
| Flow | 7 GPM | 10 GPM |
| Pressure | 1200 PSI | 1450 PSI |
| Drivetrain | Honda GX270 | Honda GX340 |
| Water Capacity | 65 Gallons | 80 Gallons |
| Foam Capacity | 5 Gallons | 5 Gallons |
| Hose Diameter | 1/2" | 1/2" |
| Hose Length | 100' | 100' |
| Weight (Dry) | 347 lbs | 398 lbs |
Optional Accessories
-
- LED Tank Level Display with Alarm
- CAT Variable Stream Nozzle
- Auto Engine Throttle Control
- Panel Mounted Engine Ignition
- Surface Mount LED light package
- Tank Level Monitoring with Auto-fill and Low-Level Shut-down
- NH Direct Fill Connection with Valve

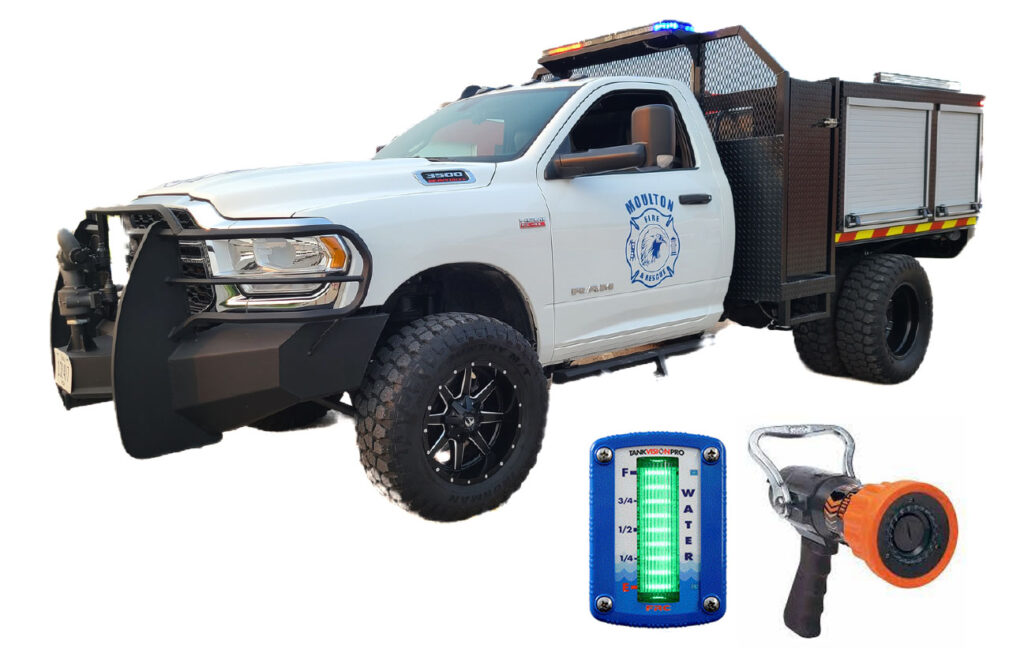

Truck Skids & Uplifts
Standard Features
-
- 150 – 300 Gallon Water Tank
- 20 GPM Triplex Piston Pump at 1200 PSI
- Honda GX690 Gas Engine with Electric Start
- LED Water level indicator with Alarm
- 5-10 Gallon Foam Cell
- Venturi Foam Injection with Proportioner
- NFPA Compliant Baffle System
- NH Direct Fill Connection with Valve
- Panel Mounted Pressure Gauge
- Elkhart UHP Handline Nozzle
- Vernier Throttle Control
Optional Accessories
-
- LED Foam Level Display
- Tank Level Monitoring with Auto-fill and Low-level Shutdown
- Auto Engine Throttle Control
- Signal Light Package
- Battery Maintainer
- Top Rail Storage System
WHY APPANOOSE ?
WHY APPANOOSE
For Your Convenience Download Our Municipal Fire Product Line PDF
Small-town customer service with a nationwide support team equips us to respond quickly to each request. Please reach out to us to discuss your department’s unique needs.
Speak with our Sales Team @ 712-206-7198
or send us a message!
DON’T SEE WHAT YOU NEED?
No problem! Our engineers will work with you to integrate the best custom options for your skid or upfit.
